Making Accessible HTML documents with Quarto

(these slides auto-follow the presentation)

David Hodge

University of Glasgow

June 8, 2026

What is Quarto?

Quarto is an open-source publishing system. You’ll be writing your content in Quarto’s Markdown language, a highly readable markdown format

Using markdown will mean your content is easily transformed into many different outputs both now and in the future

Markdown is not a TeX, Powerpoint or Word file. It’s closest to TeX, in spirit – it’s text-based, but has less syntax

Disclaimer

I don’t work for RStudio/Posit, but have just been working with their ecosystem since at least 2016 as it works for me. So, I’d say an experienced practitioner

Origins and modern day

Born from R, RStudio and the RMarkdown environment, but no longer just for R. Nowadays with native support for Python, Julia and ObservableJS (not that you need to know what they are)

The desire was for a system capable of creating outputs which contain code and the result of running it

The modern standalone quarto software means it can be used by people writing their resources in other environments (though RStudio & Positron offer nice visual interfaces)

a Quarto schematic

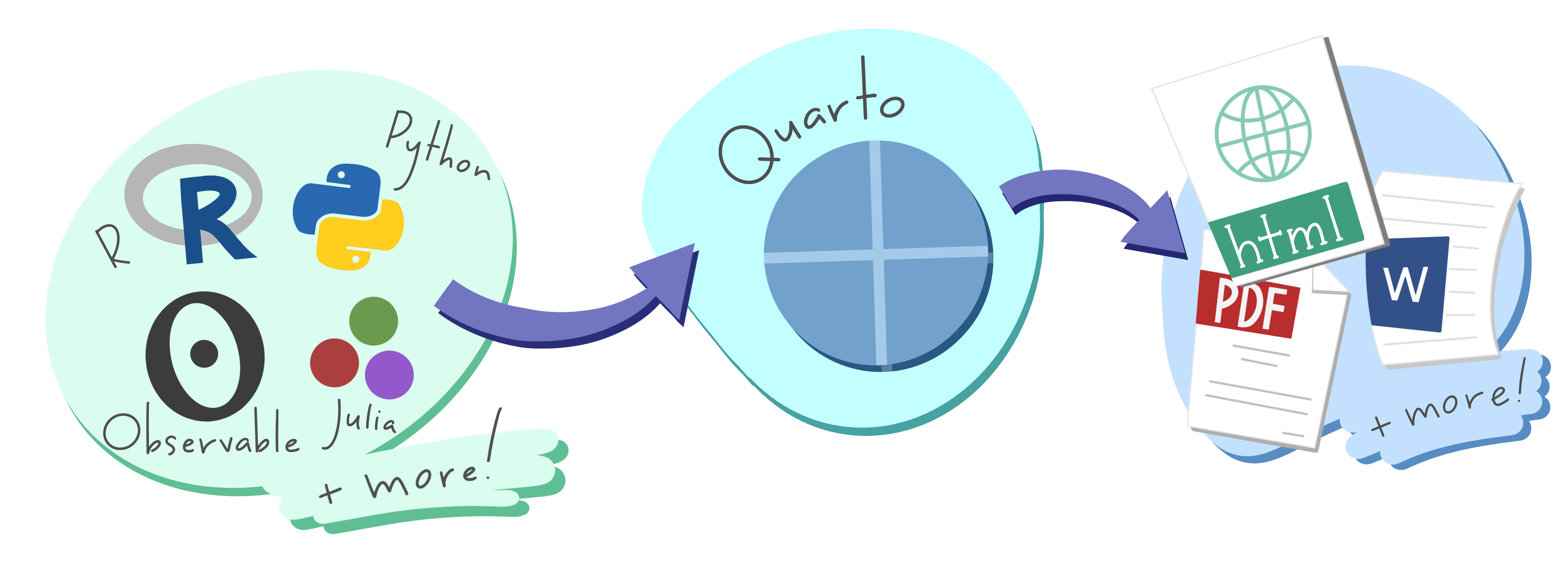

Illustration showing that you can write one file including R, Python, Observable or Julial; feed it into quarto; and expect html, pdf and others as outputs

Artwork from “Hello, Quarto” keynote by Julia Lowndes and Mine Çetinkaya-Rundel, presented at RStudio Conference 2022. Illustrated by Allison Horst.

Documentation

The Quarto website <https://www.quarto.org> is generally excellent for documentation and well-maintained. Many features are identical to former RMarkdown, but some have been improved and streamlined

Extensive gallery of sample creations at <https://quarto.org/docs/gallery/>

Plus many excellent blogs, and personal sites with advice and recommendations

Especially check out work by Mine Çetinkaya-Rundel

Software interface choices

Nowadays Posit make RStudio and Positron (based on VSCode)
Quarto available as standalone software so
- can run from command-line with any text-editors
  - just run quarto render <filename>
- or via plug-ins inside VSCode, JupyterLab and others

I believe most people use RStudio (inertia), Positron or JupyterLab

These three offer built-in clickable buttons to ‘Build your output’

Output targets

For accessibility what we really want is a machine-readable output. Here are the common Quarto output formats, which do we want?

HTML? Definitely
PDF? Maybe
Word/docx? Maybe
revealjs? Yes, HTML for presentations
epub, pptx, and others? Unlikely

Pandoc is the real transformation software running behind Quarto to convert your source materials into these many outputs.

However not all output formats will be nice accessible things.

The rendering schema

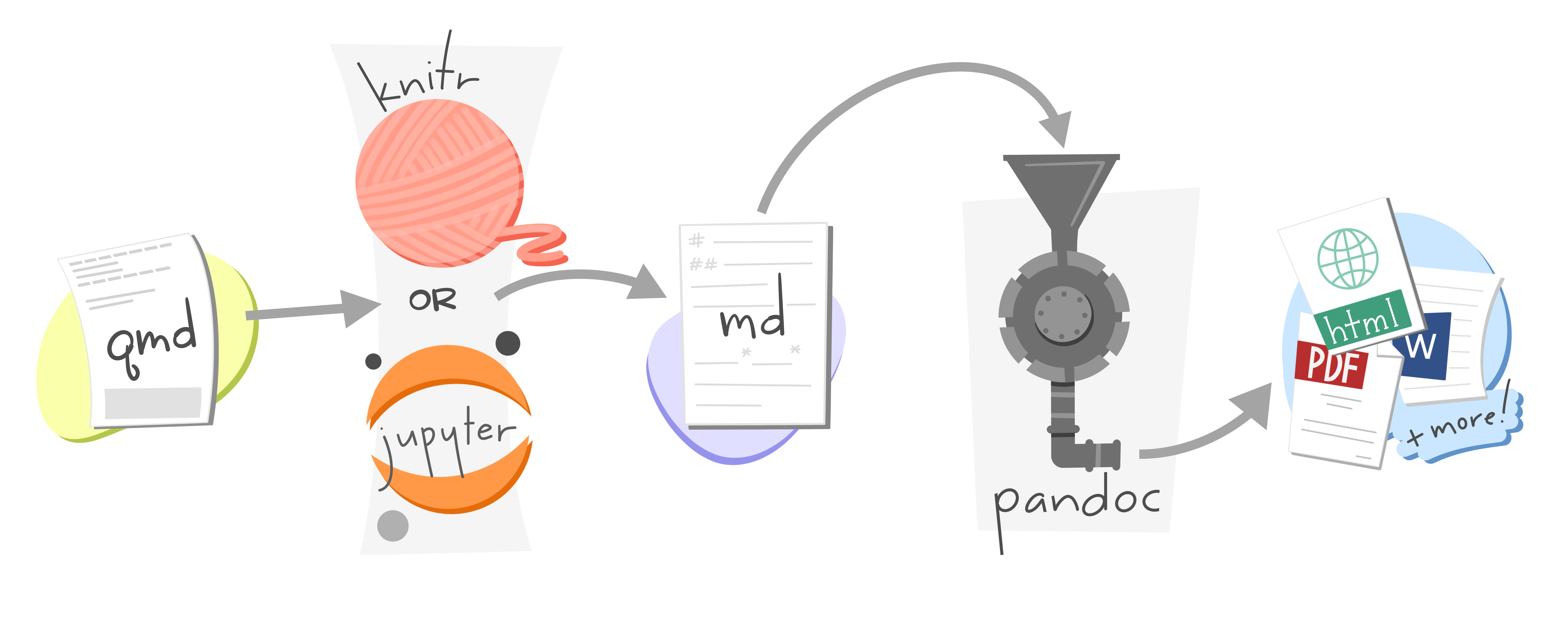

Illustrating to show that qmd files are run through knitr or jupyter; to convert to an md file; then pandoc converts that md into HTML, or PDF or Word or more

Artwork from “Hello, Quarto” keynote by Julia Lowndes and Mine Çetinkaya-Rundel, presented at RStudio Conference 2022. Illustrated by Allison Horst.

Resource types

Single page (e.g. worksheet)
Multipage/Website (e.g. book, lecture notes)
Separate mini-books (e.g lecture chapters)
Lecture/Presentation slides (e.g. like these)

In our academic world many of these were historically PDF (thanks to LaTeX), or Word/Powerpoint (availability). In the last ten years, we now have easy access to HTML.

In Quarto-world there are many standard project templates: book, website, and presentation (i.e. slides), manuscripts and blog (but there are more!).

What is accessible?

I’m primarily talking about easily machine-readable HTML

So that any browser can display it and a user can customize if they wish

More generally, so that any external accessibility-focussed software can easily navigate and permit a student to explore whatever they desire in whatever way they wish or need

You’ve come to today’s workshop so you don’t need me going into detail what sorts of features and what needs or desires people may have – but I will tell you a little of how Quarto accommodates some of them

e.g. responsiveness, landmarks/heading/structure, further colour customization, navigability, use of language

Getting started

Install R (optional)
Install Python (optional)
Install an IDE (integrated development environment)
- RStudio and Positron contain Quarto
- JupyterLab you’ll want the Quarto extension
- Or just install Quarto separately

Examples, examples, examples

For getting started… the default plain templates/projects aren’t very informative

I recommend you start with a template of someone else’s work to see what’s possible

Some of my current favourites include Tom Coleman’s (St Andrews) examples from his recent Scottish Maths Support Network workshop <https://github.com/tdhc153/smsn-quarto-workshop>

Here is the workshop itself <https://tdhc153.github.io/smsn-quarto-workshop/>

Not many sample templates I’ve found specifically address accessibility. You may also like Uni of Glasgow staff template.

Accessibility concerns

Lots of customization options
- easy to become in-accessible
Not all features are super accessibility friendly out-of-the-box
- a few defaults are poor (currently)
Occasional browser dependency issues
- fancier features may need checking

The good

Images (fig-alt)
Structure (#, ##, ###, …)
Videos (<video> or <iframe>)
Plug-ins (like a11y for slides)
- quarto add mcanouil/quarto-revealjs-a11y@0.1.1 then A
Responsiveness
MathJax
Code formatting (mostly)
Browser plug-ins

The more difficult

Dual HTML/PDF output (Quarto uses LaTeX)
- not universal feature overlap e.g. video, animations
- colour naming
- layout control
- LaTeX macros
Dissemination/hosting of HTML
- Anything but a simple HTML document is multiple files

My tips

I can’t promise the “best” advice, but hopefully it’s very good

Tips for dual output, HTML plus PDF (via LaTeX)

This forces certain writing approaches for displaying elements, e.g.

tables (grid tables)
images (title, caption, label, alt-text)

For example, when adding images only an R-chunk approach allows caption and alt text to be distinct (may change in future Quarto updates)

Colouring of text needs care too, in-built colours are not the same in HTML/CSS and LaTeX.

LaTeX knowledge is needed, to debug errors

Plug-ins and shortcodes

Just like new LaTeX packages may provide new functionality, you can seek out Quarto extensions (or even make them yourself) to add new functionality

Some of the good accessibility functionality will no doubt make its way into the core in future versions of Quarto without need to add them yourself

Examples of extensions include:

revealjs a11y (press A),
numbered-boxes (see demo chapter 4),
shortcodes,
simple iframes (see demos: Numbas embed, nicer YouTube)

MathJax versions

Newer versions of MathJax are not always pointed to by default.

Sample equation

\[f(a) = \frac{1}{2\pi i} \oint\frac{f(z)}{z-a}dz\]

Code like this (in your qmd file header)

MathJax loading code

html-math-method:
  method: mathjax
  url: "https://cdn.jsdelivr.net/npm/mathjax@4/tex-mml-chtml.js"

enforces the loading of the new MathJax 4.1.2 (at time of writing).

Videos

With the in-built shortcode syntax you an embed videos from elsewhere which already contain captions etc…

{{< video local-video.mp4 >}}
{{< video https://www.youtube.com/embed/wo9vZccmqwc >}}
{{< video https://vimeo.com/548291297 >}}
{{< video https://youtu.be/wo9vZccmqwc width="400" height="300" >}}
{{< video https://www.youtube.com/embed/wo9vZccmqwc
    title="What is the CERN?"
    start="116"
    aria-label="Video demonstration of particle physics experiments
                at CERN"
>}}

Remote hosting and using existing accessibility features elsewhere is cleanest

Demo Quarto Markdown Source

The markdown code


+ Hello
+ Me

### Level 3 heading

Here is a small equation: $x^2+y^2=z^2.$

Or maybe a big equation,

$$
\int_{0}^{\infty}e^{-x^2}\,\textrm{d}x
$$ {#eq-abc}

$$
x^2+y^2 \tag{\dagger}
\label{eq:abc}
$$

That previous equation is manually tagged as \eqref{eq:abc}.

For automatic numbering in Quarto you must use \$\$ notation. This was equation @eq-abc.

The output

Hello
Me

Level 3 heading

Here is a small equation: $x^2+y^2=z^2.$

Or maybe a big equation,

\[ \int_{0}^{\infty}e^{-x^2}\,\textrm{d}x \tag{1}\]

\[\begin{equation} x^2+y^2 \tag{\dagger} \label{eq:abc} \end{equation}\]

That previous equation is manually tagged as $\eqref{eq:abc}$.

For automatic numbering in Quarto you must use $$ notation. This was equation Equation 1.

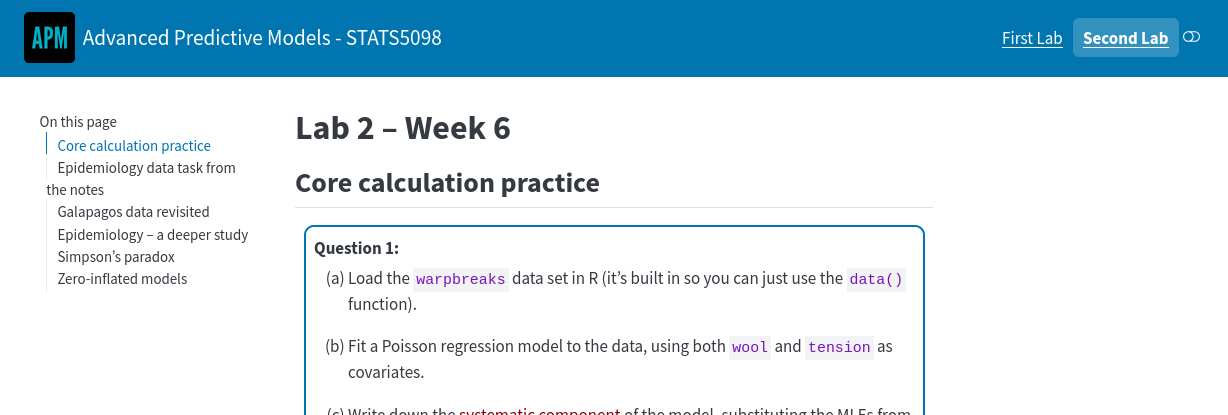

Image of a website with a rich navigation bar due to a narrower — Full width on PC monitor

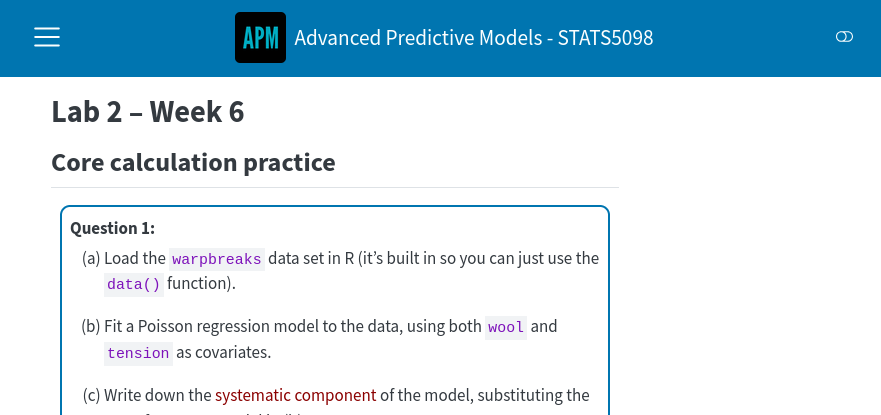

Image of a website with a reduced information navigation bar on full width — Medium width, e.g. landscape phone

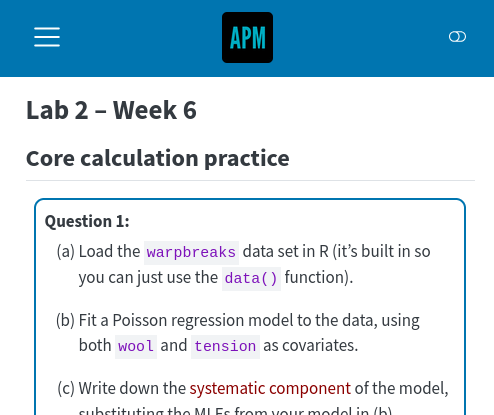

Image of a website with minimal navigation bar, due to narrow width — Narrow width, e.g. portrait phone

Callouts

Tip

Hopefully I can still do coloured boxes

If so, then I can also customize them like this:

Watch Out!

There’s danger ahead.

Built-in callouts use strong contrasting colours in light mode. In dark mode they can need a black background.

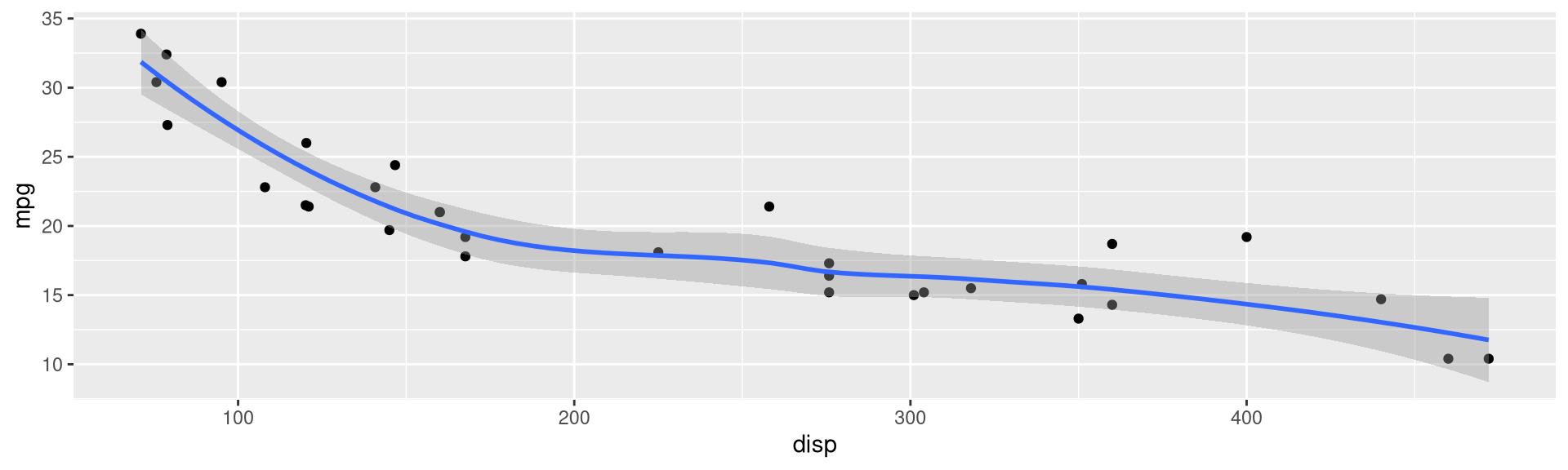

Let’s do R

library(ggplot2)

mtcars |>
  ggplot(aes(x = disp, y = mpg)) +
  geom_point() +
  geom_smooth(method = "loess",
    formula = "y~x")

Let’s do R

#| fig-alt: "This is my description of the graph"
library(ggplot2)

mtcars |>
  ggplot(aes(x = disp, y = mpg)) +
  geom_point() +
  geom_smooth(method = "loess",
    formula = "y~x")

Browser plug-ins

In Firefox, for example,

WAVE (accessibility checker)
Alt Text Viewer / AltVision

HeadingsMap
Stylebot
Color Changer

Disclaimer

I’m not endorsing any of these!

Have a play this afternoon!

Photo of the Stelvio Pass, courtesy of paprycjusz on Instagram

This ends my little tour

Courtesy of paprycjusz on Instagram
